Engine compartment
Maintenance / Engine compartment

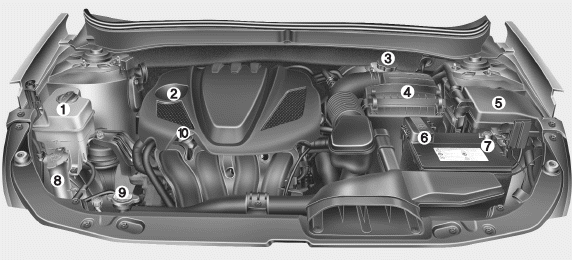

■ 2.4 GDI

Hyundai Sonata: Engine compartment. 1. Engine coolant reservoir

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Windshield washer fluid reservoir
9. Radiator cap
10. Engine oil dipstick
* : if equipped

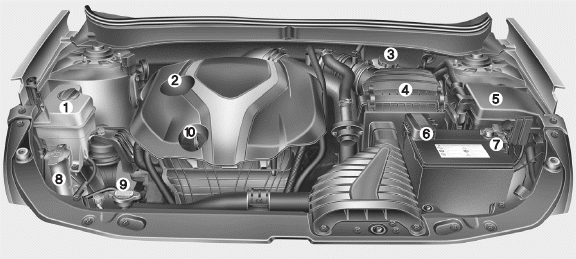

2.0 TGDI

Hyundai Sonata: Engine compartment. 1. Engine coolant reservoir

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Windshield washer fluid reservoir
9. Radiator cap
10. Engine oil dipstick

* : if equipped
