Automatic climate control system
Features of your vehicle / Automatic climate control system

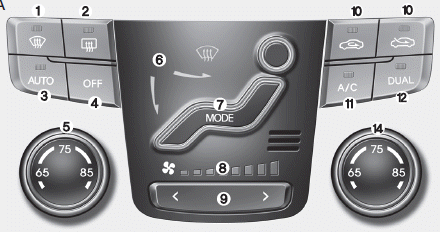

Hyundai Sonata: Automatic climate control system. Type A

Type A

Hyundai Sonata: Automatic climate control system. Type B

Type B

1. Front windshield defrost button
2. Rear window defrost button
3. AUTO (automatic control) button
4. OFF button
5. Drivers temperature control knob
6. Mode indicator
7. Mode selection button
8. Fan speed indicator (if equipped)
9. Fan speed control switch
10. Air intake control button
11. Air conditioning button
12. Dual temperature control selection button
13. Climate information screen selection button (if equipped)
14. Passengers temperature control knob
