Heating and air conditioning
Features of your vehicle / Manual climate control system / Heating and air conditioning

1. Start the engine.
2. Set the mode to the desired position. To improve the effectiveness of heating and cooling :
- Heating:
- Cooling: 3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air or recirculated air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on.

Hyundai Sonata: Heating and air conditioning. Mode selection

Mode selection

Hyundai Sonata: Heating and air conditioning. Type A

Type A

The mode selection button controls the direction of the air flow through the ventilation system.

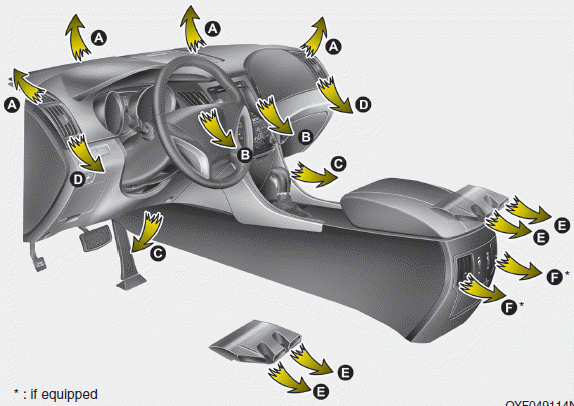

The air flow outlet port is converted as follows:

Hyundai Sonata: Heating and air conditioning.

Hyundai Sonata: Heating and air conditioning. Face-Level (B, D, E C, F)

Face-Level (B, D, E C, F)

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Hyundai Sonata: Heating and air conditioning. Bi-Level (B, D, E, C, F)

Bi-Level (B, D, E, C, F)

Air flow is directed towards the face and the floor.

Hyundai Sonata: Heating and air conditioning. Floor-Level (C, A, D, E)

Floor-Level (C, A, D, E)

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.

Hyundai Sonata: Heating and air conditioning. Floor/Defrost-Level (A, C, D, E)

Floor/Defrost-Level (A, C, D, E)

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

Hyundai Sonata: Heating and air conditioning. Defrost-Level (A, D)

Defrost-Level (A, D)

Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters.

Hyundai Sonata: Heating and air conditioning. Type B

Type B

If you push the button once, the corresponding switch will turn on, and if you push the button again, the switch will turn off.

Hyundai Sonata: Heating and air conditioning. D) (Button 1)Defrost-Level (A, D) (Button 1)

Most of the air flow is directed to the windshield.

Hyundai Sonata: Heating and air conditioning. D, E, F) (Button 2)Face-Level (B, C, D, E, F) (Button 2)

Air flow is directed toward the upper body and face.

Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Hyundai Sonata: Heating and air conditioning. D, E) (Button 3)Floor-Level (A, C, D, E) (Button 3)

Most of the air flow is directed to the floor.

Also you may select 2~3 modes at the same time for desired air flow.

Hyundai Sonata: Heating and air conditioning. and 2)Defrost & Face Level (Button 1 and 2)

Hyundai Sonata: Heating and air conditioning. 1 and 3)Defrost & Floor Level (Button 1 and 3)

Hyundai Sonata: Heating and air conditioning. 3)Face & Floor Level (Button 2 and 3)

Hyundai Sonata: Heating and air conditioning. MAX A/C-Level (B, D)All mode (Button 1, 2 and 3)

MAX A/C-Level (B, D)

Hyundai Sonata: Heating and air conditioning. To operate the MAX A/C, turn the temperature knob to extreme left. Air flow is

To operate the MAX A/C, turn the temperature knob to extreme left. Air flow is directed toward the upper body and face. In this mode, the air conditioning and the recirculated air position will be selected automatically.

Hyundai Sonata: Heating and air conditioning. Instrument panel vents

Instrument panel vents

The outlet vents can be opened or closed separately using the thumbwheel. Also, you can adjust the direction of air delivered from these vents using the vent control lever as shown.
